The synergic Sherman MIG 200HD welder is used for manual welding of steel and non-ferrous metals. It enables MMA (coated electrode), TIG Lift, and MIG / MAG welding in a synergic and manual mode. Due to the change of polarity, the device allows MIG / MAG welding with the use of both standard wires in a protective gas shield and self-shielding flux-cored wires. The device allows you to connect a Spool Gun with a mini wire feeder installed in it and a D100 steel or colored wire spool. Adjusting the inductance allows braze welding of thin galvanized elements. The welder can work in synergic or manual mode with the option of a quick return to the initial synergic settings. The device has built-in automatic HOT START and ANTI STICK functions, it also allows you to save 20 sets of parameters for the MIG method.
On the inside of the spool chamber cover there is a shortened guide for the welder to facilitate the day-to-day operation of the device with a detailed description of access to the adjustable operating parameters. The device is made in IGBT technology that allows for a significant reduction in the weight and dimensions of the welding machine and an increase in efficiency while reducing energy consumption. The welder is used in closed or roofed rooms, not exposed to direct weather conditions.

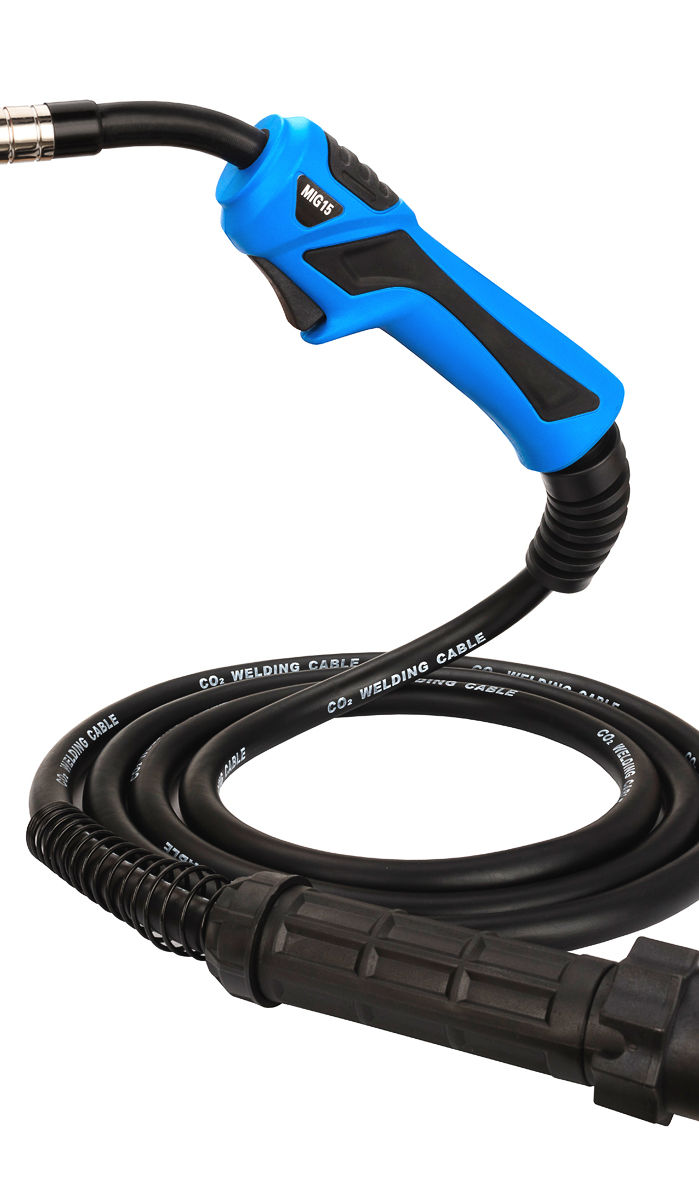

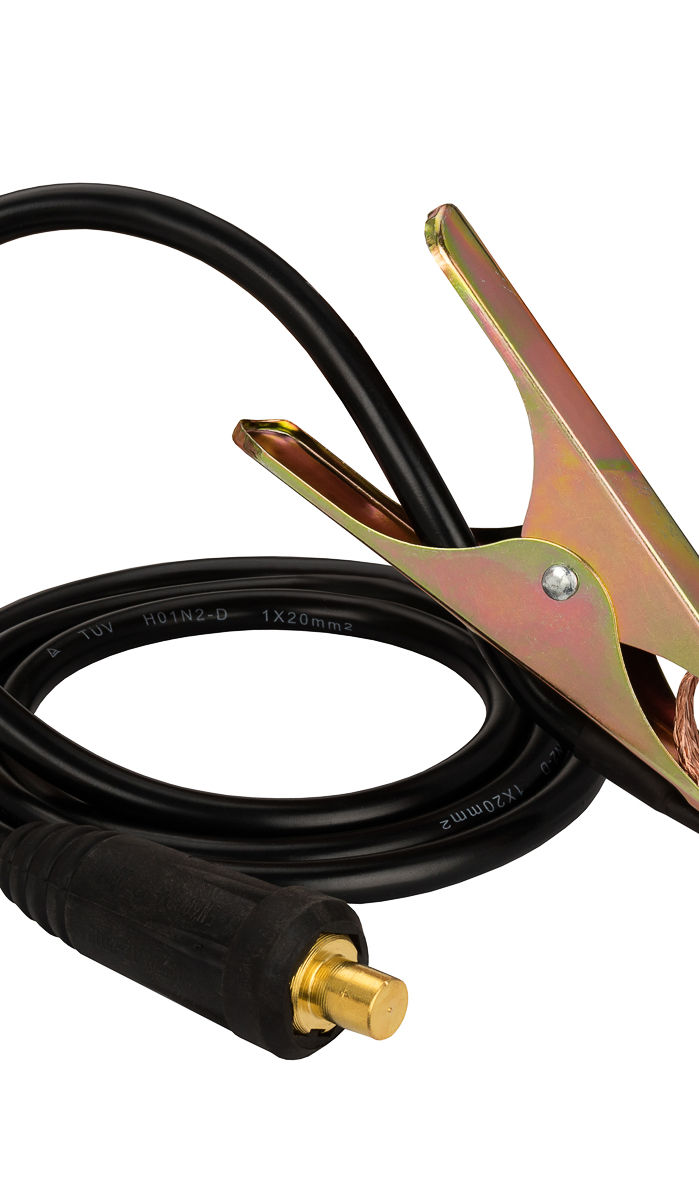

The device is equipped with a MIG welding gun, an electrode cable and a ground cable with a clamp.
More information can be found on the right side.

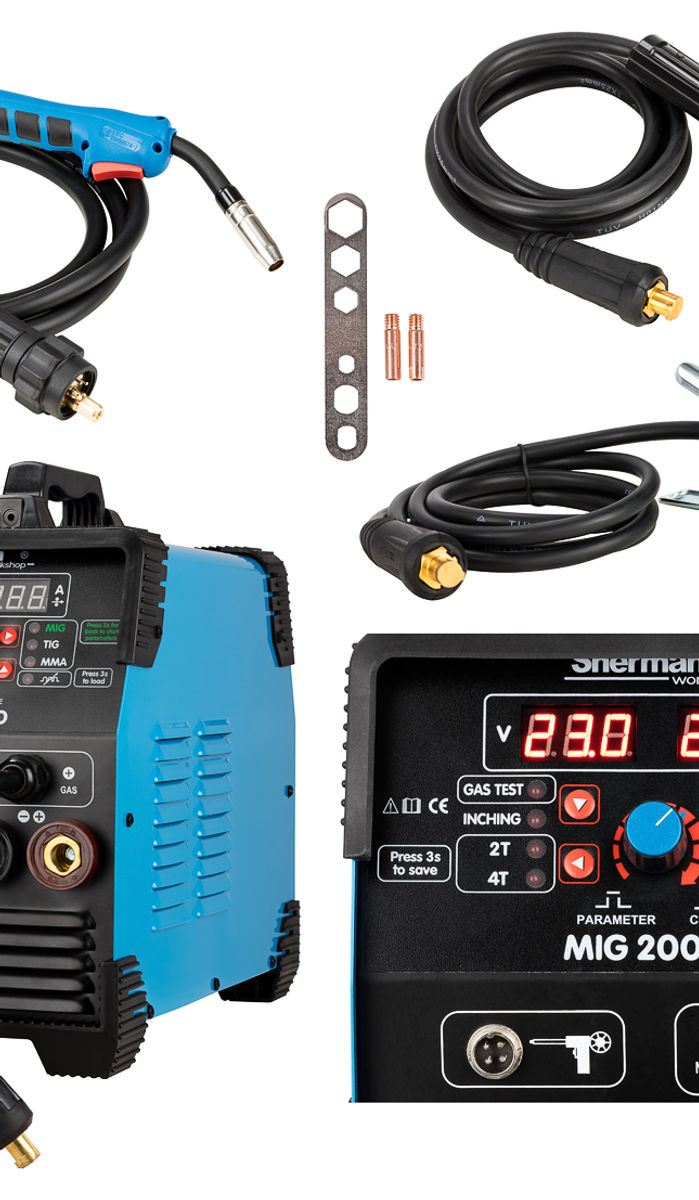

Sherman MIG 200HD Synergy Inverter Welder
- Supply voltage [V]: 230 AC 50Hz
- Welding methods: MIG, MMA, Tig Lift
- The technology: IGBT
- Welding current [A]: MIG 200, TIG 180, MMA 180
- Duty cycle [%]: MIG 45%, TIG 60%, MMA 60%
- Max. current consumption [A]: 33
- Max. power consumption [KVA]: 6.6
- Adjust welding current: Smooth
- Avg. a spool of wire [mm]: 100, 200
- Of speed. Wire feed [m / min]: 2 - 15
- Weight [kg]: 14
- Dimensions (D x W x H) [mm]: 450 x 210 x 330
